![](./pimg/p1t1.gif)
![](./p1img/color1.jpg) Black |
![](./p1img/color2.jpg) Silver Metallic |
![](./p1img/color3.jpg) Silver Black |
![](./p1img/color4.jpg) Subaru |
![](./p1img/color5.jpg) Hi Silver (Special order) |
|
![](./pimg/p1t3.gif)
![](./pimg/p1t2.gif)
![](./p1img/noki1.jpg) Manju Eave |
![](./p1img/noki2.jpg) Straight Eave |
![](./p1img/noki3.jpg) Ichimonji Eave |
| ![](../img/kuu.gif) |
![](./pimg/p1sp.gif)
![](./p1img/sp1.jpg) |

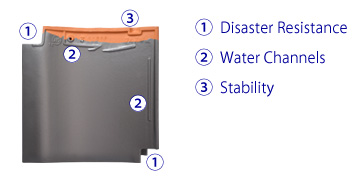

(1) Disaster Resistance The locks on the upper-right corner and the bottom-left corner lock together to keep the roof tiles secure. |
(2) Water Channels The water channels on the tops and sides of the tiles prevent rainwater infiltration when there is a strong storm. |
(3) Stability By putting hooks on the back of the tiles, they are stable when installed. |
Length | 305mm |
Width | 305mm |
Exposed Length | 235mm |
Exposed Width | 265mm |
Weight | 2.6kg/piece (41.7kg/m2) |
Pieces per 1 m2 | 16.06 pieces |
Roof pitch and roof length |
Roof Pitch |
4.0/10 |
4.5/10 |
5.0/10 |
5.5/10 |
6.0/10 |
Roof Length |
8m |
10m |
12m |
15m |
17m |
|
