![](./p2img/colore1.jpg) Silver Black |
![](./p2img/colore2.jpg) Straight Black |
![](./p2img/colore3.jpg) Matte Brown |
![](./p2img/colore4.jpg) Subaru |
![](./p2img/colore5.jpg) Rusty Green |
![](./p2img/colore6.jpg) * Clear Matte <1> |
* | Heat Resistant Color - these colored tiles reflect more than 50% of the infrared rays from sunlight to reduce heat. |
<1> | There is a wood pattern on these colored tiles (this is from the glaze we use on them). |
![](./p2img/exa2.jpg)
![](./pimg/ptf5.gif)
![](./p2img/mune1.jpg) V-shaped Ridge |
![](./p2img/mune2.jpg) Triangular Ridge |
![](../img/kuu.gif) |
![](./pimg/ptf5.gif)
![](./p2img/sode1.jpg) Side Gable |
![](./p2img/sode2.jpg) Both Side Gable |
![](./p2img/sode1.jpg) Wide Side Gable |
| ![](../img/kuu.gif) |
![](./pimg/p1sp.gif)
![](./p2img/exa3.jpg) |

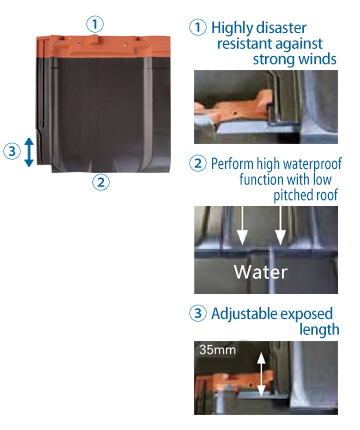

(1) Disaster Resistant
The patented improved locking function offers enhanced disaster resistant against to the strong wind. |
(2) Low Pitched Roof
Unique R shaped surface controls the flow of rainwater and this leads the industry's first class waterproof performance with 2.5/10 pitched roof. |
(3) High Performance
Exa provides 35 mm adjustable length in exposed length and can install easily without cutting the roof tiles. Improving workability and reducing wasted materials on site. |
Length | 352mm |
Width | 341mm |
Exposed Length | 280mm(275-285mm) |
Exposed Width | 303mm |
Weight | 3.5kg/piece (41.3kg/m2) |
Pieces per 1 m2 | 12 pieces |
Roof pitch and roof length |
Roof Pitch |
2.5/10 |
3.0/10 |
3.5/10 |
4.0/10 |
Roof Length |
6m |
8m |
10m |
12m |
Roof Pitch |
4.5/10 |
5.0/10 |
6.0/10 |
|
Roof Length |
15m |
18m |
24m |
|
|
